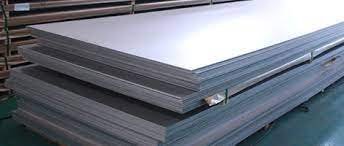

Alloy Steel Plates, Sheets, and Coils are high-strength flat steel products engineered for high-temperature, high-pressure, and corrosive service conditions. These materials are alloyed with chromium and molybdenum to improve strength, oxidation resistance, and creep performance.
Alloy Steel Plates and Coils are widely used in power plants, refineries, petrochemical units, boilers, and pressure vessel fabrication where durability and reliability are critical.
Alloy Steel Plates, Sheets, and Coils are manufactured as per ASTM and ASME standards. Commonly supplied grades include Alloy Steel Gr 5, Gr 9, Gr 11, Gr 12, and Gr 22, offering excellent mechanical strength, heat resistance, and corrosion resistance for demanding industrial applications.
Alloy Steel Plate Manufacturer in India | Alloy Steel Sheet & Coil Supplier
Applications of Alloy Steel Plates, Sheets & Coils
| ● Boilers & Pressure Vessels |
| ● Power Generation & Thermal Plants |
| ● Oil & Gas Refineries |
| ● Petrochemical & Chemical Processing |
| ● Heat Exchangers & Storage Tanks |
| ● Heavy Fabrication & Engineering |
Specification Table of Alloy Steel Plates / Sheets / Coils
| Standard | ASTM A387, ASME SA387 |
|---|---|
| Grades | Gr 5, Gr 9, Gr 11, Gr 12, Gr 22 |
| Form | Plates, Sheets, Coils |
| Thickness | 3 mm to 200 mm (Custom sizes available) |
| Width | 1000 mm to 3000 mm |
| Surface Finish | Hot Rolled, Normalized, Pickled, Shot Blasted |
Alloy Steel Plate / Sheet / Coil Grades
| ● Alloy Steel Gr 5 Plates – Chromium-molybdenum steel for moderate to high-temperature service |
| ● Alloy Steel Gr 9 Plates – Improved oxidation and heat resistance |
| ● Alloy Steel Gr 11 Plates – Widely used for boilers and pressure vessels |
| ● Alloy Steel Gr 12 Plates – Enhanced creep strength for elevated temperature applications |
| ● Alloy Steel Gr 22 Plates – High chromium alloy offering superior corrosion and heat resistance |
Mechanical Properties (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| Alloy Steel Gr 5 | 205 | 415 | 20 |
| Alloy Steel Gr 11 | 205 | 415 | 20 |
| Alloy Steel Gr 22 | 205 | 415 | 20 |
