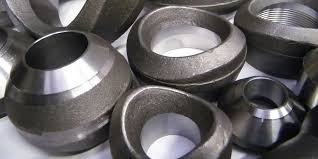

Carbon Steel Outlet Fittings are forged branch connection fittings used to create outlet connections from main pipelines in high-pressure and high-temperature service conditions. These fittings are manufactured from high-quality carbon steel materials to ensure excellent strength, durability, and pressure-handling capability.
Carbon Steel Outlet Fittings are widely used in oil & gas, power plants, refineries, and industrial piping systems where mechanical strength, reliability, and cost-effectiveness are critical. They provide leak-proof performance and long service life under demanding operating conditions.
Carbon Steel Outlet Fittings are available in multiple ASTM grades to meet diverse application requirements. Commonly supplied grades include ASTM A105 Carbon Steel Outlet, ASTM A106 Grade B Carbon Steel Outlet, and ASTM A234 Carbon Steel Outlet, offering an excellent balance of strength, toughness, and weldability.
Carbon Steel Outlet Fittings Manufacturer in India | ASTM A105, A106 Gr B & A234 Outlet Supplier
Applications of Carbon Steel Outlet Fittings
| ● Oil & Gas Pipelines |
| ● Refineries & Petrochemical Plants |
| ● Power Generation & Thermal Power Plants |
| ● Boilers, Heat Exchangers & Pressure Vessels |
| ● Water Treatment & Fire Fighting Systems |
| ● General Industrial & Structural Piping |
Specification Table of Carbon Steel Outlet Fittings
| Standard | ASTM A105, ASTM A106 Gr B, ASTM A234, ASME B16.11, MSS SP-97 |
|---|---|
| Type | Weldolet, Threadolet, Sockolet, Nippolet, Elbolet |
| Size | 1/8″ NB to 24″ NB (Custom sizes available) |
| Pressure Class | 3000#, 6000#, 9000# |
| Manufacturing | Forged |
| Surface Finish | Black, Pickled, Machined, Galvanized |
Carbon Steel Outlet Fitting Grades
| ● ASTM A105 – Forged carbon steel grade with excellent strength and weldability, suitable for high-pressure applications |
| ● ASTM A106 Grade B – Seamless carbon steel grade ideal for high-temperature services |
| ● ASTM A234 – Carbon steel grade used for welded outlet fittings in moderate to high-temperature piping systems |
Mechanical Properties of Carbon Steel Outlet Fittings
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| ASTM A105 | 250 | 485 | 22 |
| ASTM A106 Gr B | 240 | 415 | 20 |
| ASTM A234 | 215 | 415 | 20 |
