Titanium Flanges are high-performance piping components known for their exceptional strength-to-weight ratio, outstanding corrosion resistance, and long service life in extreme operating environments. Titanium offers excellent resistance to seawater, chlorides, acidic media, and aggressive industrial chemicals.
Titanium Flanges are manufactured through forging and machining processes and are widely used in critical piping systems where lightweight construction, high mechanical strength, and leak-proof performance are essential under high pressure and corrosive conditions.
Titanium Flanges are available in commercially pure and alloyed grades to meet diverse service requirements. The most commonly supplied grades include Titanium Grade 2 and Titanium Grade 5 (Ti-6Al-4V), offering an excellent balance of corrosion resistance, mechanical strength, and durability.
Titanium Flange Manufacturer in India | Titanium Gr 2 & Gr 5 Flange Supplier
Applications of Titanium Flanges
| ● Heat Exchangers, Condensers & Process Piping |
| ● Chemical Processing & Petrochemical Plants |
| ● Marine, Seawater & Desalination Systems |
| ● Aerospace & High-Performance Engineering |
| ● Power Generation & Offshore Platforms |
| ● Pharmaceutical, Medical & Clean Room Installations |
Specification Table of Titanium Flanges
| Standard | ASTM B381, ASME SB381, ASME B16.5, ASME B16.47 |
|---|---|
| Grades | Titanium Grade 2, Titanium Grade 5 (Ti-6Al-4V) |
| Size | 1/2″ NB to 48″ NB |
| Pressure Class | 150, 300, 600, 900, 1500, 2500 |
| Flange Types | Weld Neck, Slip On, Blind, Socket Weld, Threaded, Lap Joint |
| Surface Finish | Machined, Polished, Pickled |
Titanium Flange Grades

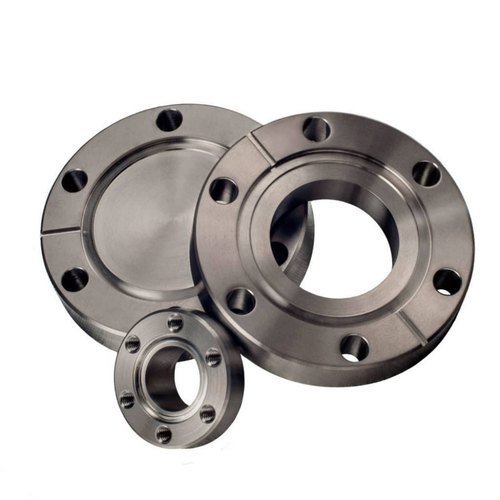

| ● Titanium Grade 2 – Excellent corrosion resistance with moderate strength, widely used in chemical processing, marine, and heat exchanger piping systems |

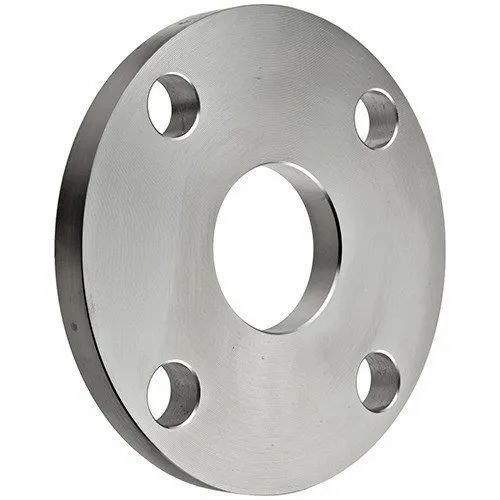

| ● Titanium Grade 5 (Ti-6Al-4V) – High strength alloy with superior fatigue resistance, commonly used in aerospace, offshore, and high-pressure applications |
Mechanical Properties of Titanium Flanges (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| Titanium Grade 2 | 275 | 345 | 20 |
| Titanium Grade 5 | 880 | 950 | 14 |
