Stainless Steel Flanges are widely used piping components designed to connect pipes, valves, pumps, and other equipment in various industrial piping systems. These flanges are known for their excellent corrosion resistance, high mechanical strength, durability, and reliable performance under high-pressure and high-temperature conditions.
Stainless Steel Flanges provide easy access for inspection, cleaning, and modification of piping systems and are extensively used in oil & gas, chemical processing, power generation, petrochemical, marine, and industrial fluid handling applications.
Stainless Steel Flanges are manufactured using high-quality forged materials conforming to ASTM standards. The most commonly supplied grades include ASTM A182 F304, ASTM A182 F316, ASTM A182 F310, ASTM A182 F321 and ASTM A182 F347, offering excellent resistance to corrosion, oxidation, and elevated temperatures.
Stainless Steel Flange Manufacturer in India | ASTM A182 F304 / F316 / F310 / F321 / F347 Flange Supplier
Applications of Stainless Steel Flanges
| ● Oil & Gas Pipelines and Refineries |
| ● Chemical & Petrochemical Processing Plants |
| ● Power Generation and Thermal Plants |
| ● Marine & Offshore Applications |
| ● Food Processing & Pharmaceutical Industry |
| ● Pressure Vessels, Heat Exchangers & Industrial Piping |
Specification Table of Stainless Steel Flanges
| Standard | ASTM A182 / ASME SA182 |
|---|---|
| Grades | F304, F316, F310, F321, F347 |
| Pressure Class | 150, 300, 600, 900, 1500, 2500 |
| Size | ½” NB to 48” NB |
| Types | Weld Neck, Slip On, Blind, Socket Weld, Threaded, Lap Joint |
| Surface Finish | Annealed, Pickled, Machined, Polished |
Stainless Steel Flange Grades (Sub-Products)
| ● ASTM A182 F304 – General-purpose grade with excellent corrosion resistance |
| ● ASTM A182 F316 – Enhanced resistance to chlorides and marine environments |
| ● ASTM A182 F310 – Excellent oxidation resistance at high temperatures |

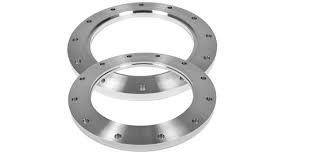

| ● ASTM A182 F321 – Titanium stabilized grade for elevated temperature service |
| ● ASTM A182 F347 – Niobium stabilized grade with improved creep resistance |
Mechanical Properties of Stainless Steel Flanges (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| ASTM A182 F304 | 205 | 515 | 40 |
| ASTM A182 F316 | 205 | 515 | 40 |
| ASTM A182 F310 | 205 | 520 | 40 |
| ASTM A182 F321 | 205 | 515 | 40 |
| ASTM A182 F347 | 205 | 515 | 40 |
