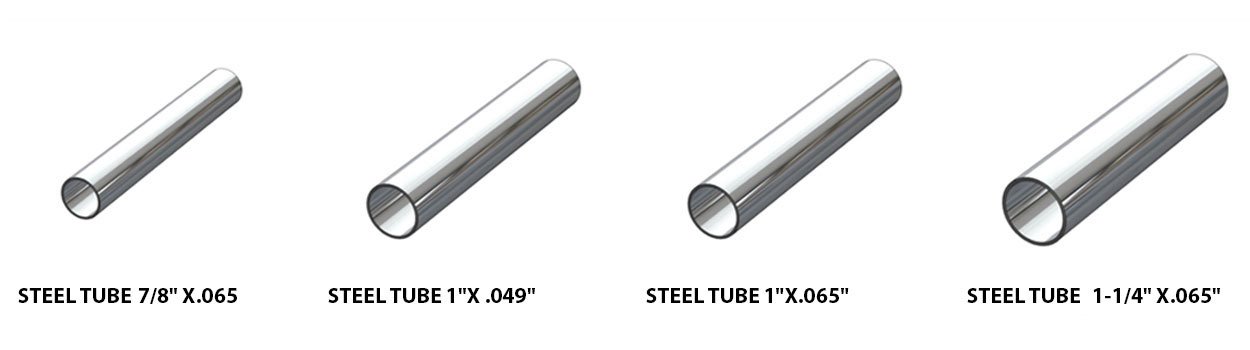

PIPE TUBE DIMENSION

PIPE TUBE DIMENSION

PIPE TUBE DIMENSION
Tube O.D. Tube Gauge
00 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Wall Thickness (Inches)
0.380 0.340 0.300 0.284 0.259 0.238 0.220 0.203 0.180 0.165 0.148 0.134 0.120 0.109 0.095 0.083 0.072 0.065 0.058 0.049 0.042 0.035 0.032 0.028 0.025 0.022
Tube I.D.
1/4″ N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 0.010 0.032 0.060 0.084 0.106 0.120 0.134 0.152 0.166 0.180 0.186 0.194 0.200 0.206
3/8″ N/A N/A N/A N/A N/A N/A N/A N/A 0.015 0.045 0.079 0.107 0.135 0.157 0.185 0.209 0.231 0.245 0.259 0.277 0.291 0.305 0.311 0.319 0.325 0.331
1/2″ N/A N/A N/A N/A N/A 0.024 0.060 0.094 0.140 0.170 0.204 0.232 0.260 0.282 0.310 0.334 0.356 0.370 0.384 0.402 0.416 0.430 0.436 0.444 0.450 0.456
5/8″ N/A N/A 0.025 0.057 0.107 0.149 0.185 0.219 0.265 0.295 0.329 0.357 0.385 0.407 0.435 0.459 0.481 0.495 0.509 0.527 0.541 0.555 0.561 0.569 0.575 0.581
3/4″ N/A 0.070 0.150 0.182 0.232 0.274 0.310 0.344 0.390 0.420 0.454 0.482 0.510 0.532 0.560 0.584 0.606 0.620 0.634 0.652 0.666 0.680 0.686 0.694 0.700 0.706
7/8″ 0.115 0.195 0.275 0.307 0.357 0.399 0.435 0.469 0.515 0.545 0.579 0.607 0.635 0.657 0.685 0.709 0.731 0.745 0.759 0.777 0.791 0.805 0.811 0.819 0.825 0.831
1″ 0.240 0.320 0.400 0.432 0.482 0.524 0.560 0.594 0.640 0.670 0.704 0.732 0.760 0.782 0.810 0.834 0.856 0.870 0.884 0.902 0.916 0.930 0.936 0.944 0.950 0.956
1 1/8″ 0.365 0.445 0.525 0.557 0.607 0.649 0.685 0.719 0.765 0.795 0.829 0.857 0.885 0.907 0.935 0.959 0.981 0.995 1.009 1.027 1.041 1.055 1.061 1.069 1.075 1.081
1 1/4″ 0.490 0.570 0.650 0.682 0.732 0.774 0.810 0.844 0.890 0.920 0.954 0.982 1.010 1.032 1.060 1.084 1.106 1.120 1.134 1.152 1.166 1.180 1.186 1.194 1.200 1.206
1 1/2″ 0.740 0.820 0.900 0.932 0.982 1.024 1.060 1.094 1.140 1.170 1.204 1.232 1.260 1.282 1.310 1.334 1.356 1.370 1.384 1.402 1.416 1.430 1.436 1.444 1.450 1.456
1 3/4″ 0.990 1.070 1.150 1.182 1.232 1.274 1.310 1.344 1.390 1.420 1.454 1.482 1.510 1.532 1.560 1.584 1.606 1.620 1.634 1.652 1.666 1.680 1.686 1.694 1.700 1.706
2″ 1.240 1.320 1.400 1.432 1.482 1.524 1.560 1.594 1.640 1.670 1.704 1.732 1.760 1.782 1.810 1.834 1.856 1.870 1.884 1.902 1.916 1.930 1.936 1.944 1.950 1.956
2 1/4″ 1.490 1.570 1.650 1.682 1.732 1.774 1.810 1.844 1.890 1.920 1.954 1.982 2.010 2.032 2.060 2.084 2.106 2.120 2.134 2.152 2.166 2.180 2.186 2.194 2.200 2.206
2 1/2″ 1.740 1.820 1.900 1.932 1.982 2.024 2.060 2.094 2.140 2.170 2.204 2.232 2.260 2.282 2.310 2.334 2.356 2.370 2.384 2.402 2.416 2.430 2.436 2.444 2.450 2.456
2 3/4″ 1.990 2.070 2.150 2.182 2.232 2.274 2.310 2.344 2.390 2.420 2.454 2.482 2.510 2.532 2.560 2.584 2.606 2.620 2.634 2.652 2.666 2.680 2.686 2.694 2.700 2.706
3″ 2.240 2.320 2.400 2.432 2.482 2.524 2.560 2.594 2.640 2.670 2.704 2.732 2.760 2.782 2.810 2.834 2.856 2.870 2.884 2.902 2.916 2.930 2.936 2.944 2.950 2.956
3 1/4″ 2.490 2.570 2.650 2.682 2.732 2.774 2.810 2.844 2.890 2.920 2.954 2.982 3.010 3.032 3.060 3.084 3.106 3.120 3.134 3.152 3.166 3.180 3.186 3.194 3.200 3.206
3 1/2″ 2.740 2.820 2.900 2.932 2.982 3.024 3.060 3.094 3.140 3.170 3.204 3.232 3.260 3.282 3.310 3.334 3.356 3.370 3.384 3.402 3.416 3.430 3.436 3.444 3.450 3.456
3 3/4″ 2.990 3.070 3.150 3.182 3.232 3.274 3.310 3.344 3.390 3.420 3.454 3.482 3.510 3.532 3.560 3.584 3.606 3.620 3.634 3.652 3.666 3.680 3.686 3.694 3.700 3.706
4″ 3.240 3.320 3.400 3.432 3.482 3.524 3.560 3.594 3.640 3.670 3.704 3.732 3.760 3.782 3.810 3.834 3.856 3.870 3.884 3.902 3.916 3.930 3.936 3.944 3.950 3.956
4 1/4″ 3.490 3.570 3.650 3.682 3.732 3.774 3.810 3.844 3.890 3.920 3.954 3.982 4.010 4.032 4.060 4.084 4.106 4.120 4.134 4.152 4.166 4.180 4.186 4.194 4.200 4.206
4 1/2″ 3.740 3.820 3.900 3.932 3.982 4.024 4.060 4.094 4.140 4.170 4.204 4.232 4.260 4.282 4.310 4.334 4.356 4.370 4.384 4.402 4.416 4.430 4.436 4.444 4.450 4.456
4 3/4″ 3.990 4.070 4.150 4.182 4.232 4.274 4.310 4.344 4.390 4.420 4.454 4.482 4.510 4.532 4.560 4.584 4.606 4.620 4.634 4.652 4.666 4.680 4.686 4.694 4.700 4.706
5″ 4.240 4.320 4.400 4.432 4.482 4.524 4.560 4.594 4.640 4.670 4.704 4.732 4.760 4.782 4.810 4.834 4.856 4.870 4.884 4.902 4.916 4.930 4.936 4.944 4.950 4.956
5 1/4″ 4.490 4.570 4.650 4.682 4.732 4.774 4.810 4.844 4.890 4.920 4.954 4.982 5.010 5.032 5.060 5.084 5.106 5.120 5.134 5.152 5.166 5.180 5.186 5.194 5.200 5.206
