ASTM A182 F1 FLANGES

Alloy Steel F1 Pipe Flanges, A182 F1 Material, 150# ANSI Alloy F1 Flanges, Carbon Moly F1 Pipe Flanges, Alloy Steel F1 Spacer, ANSI B16.5 Alloy Steel F1 Orifice Flange, A182 Carbon Moly Pipe Flanges, Alloy Steel F1 Spectacle Blind Flange, Alloy Steel F1 Slip On Flanges Supplier in Mumbai, India.

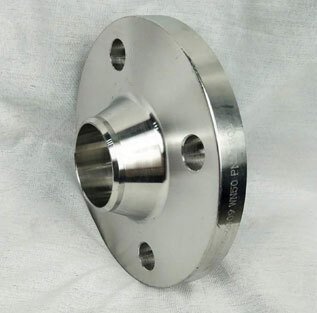

Alloy Steel F1 Flanges

Alloy Steel F1 Flanges

Revinox manufactures and supplies Alloy Steel F1 Pipe Flanges suitable for moderate temperature and pressure applications. ASTM A182 F1 flanges are manufactured from carbon molybdenum steel and offer good strength, excellent machinability, and reliable performance in power plants, refineries, petrochemical, and industrial piping systems. These flanges provide good resistance to thermal stress and ensure long service life under operating conditions.

Alloy Steel F1 Nippolet Flanges, ANSI B16.5 Carbon Moly F1 Ring Type Joint Flanges, Alloy Steel F1 Industrial Flanges Stockholder, Alloy Steel F1 Spade Flange, ASME SA182 Alloy Steel F1 Lap Joint Flange, Alloy Steel Grade F1 Screwed Flanges Stockist, Alloy Steel F1 Spectacle Blind Flanges, Alloy Steel F1 Forged Flanges Manufacturer.
Alloy Steel F1 Flanges
Alloy Steel Flanges
F1 Alloy Steel WNRF Flanges
Alloy Steel F1 Lapped Joint Flanges
Alloy Steel F1 Plate Flange
ASTM A182 Carbon Moly F1 Threaded Flanges, Alloy Steel Gr. F1 Socket Weld Flanges, Alloy Steel F1 RTJ Flange, F1 Alloy Steel WNRF Flanges Exporter, Alloy Steel F1 Nippo Flanges, Carbon Moly F1 Blind Flanges, Alloy Steel F1 Weld Neck Flange Dealer in India.
What is F1 steel?

Forging material specified by ASTM A182 F1 is a carbon molybdenum steel used for manufacturing forged and machined components for moderate temperature and pressure service. ASTM A182 F1 material offers good strength, excellent machinability, and reliable performance in power plants, refineries, and industrial piping systems.

A182 F1 Material Specification
Specifications ASTM A182 / ASME SA182
Size 1/2″ (15 NB) to 48″ (1200 NB)
Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS 4504, BS 10, EN 1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Standard ANSI, ASME, BS, DIN, EN Flanges

Types of Alloy Steel F1 Flanges

Alloy Steel F1 Slip On Flanges Carbon Moly F1 Slip On Flanges
ASTM A182 F1 SORF Flanges
Alloy Steel F1 Raised Face Slip On Flanges
Alloy Steel F1 Weld Neck Flanges ASTM A182 F1 WNRF Flanges
Carbon Moly F1 Weld Neck Flanges
Alloy Steel F1 Weld Neck Flanges
Alloy Steel F1 Blind Flanges ASTM A182 F1 Blind Flanges
Carbon Moly F1 BLRF Flanges
Alloy Steel F1 Blind Flanges
Alloy Steel F1 Socket Weld Flanges Carbon Moly F1 Socket Weld Flanges
ASTM A182 F1 SWRF Flanges
Alloy Steel F1 Threaded Flanges Carbon Moly F1 Threaded Flanges
ASTM A182 F1 Screwed Flanges
Alloy Steel F1 RTJ Flanges Alloy Steel F1 Ring Type Joint Flanges
ASTM A182 F1 RTJ Flanges
Alloy Steel F1 Spectacle Blind Flange Carbon Moly F1 Spectacle Blind Flanges
ASTM A182 F1 Spectacle Blind Flange
Alloy Steel F1 Spade Flange Carbon Moly F1 Spade Flange
ASTM A182 F1 Spade Flanges

Alloy Steel F1 Pipe Flanges Chemical Composition

Grade C Mn Si P S Mo
Alloy Steel F1 0.15 max 0.30–0.60 0.50–1.00 0.03 0.03 0.44–0.65

Alloy Steel F1 Plate Flanges Mechanical Properties

Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
415 205 20

ASME A182 F1 Alloy Steel Flanges Equivalent Grade

STANDARD WERKSTOFF NR. UNS
ASTM A182 F1 1.7335 K11522

Alloy Steel F1 Flange Standards / Types And Pressure Class

ASME / ANSI B16.5 Welding Neck Flange, Slip On Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME / ANSI B16.47 Welding Neck Flange, Blind Flange (Series A & Series B)
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME / ANSI B16.36 Welding Neck Flange, Slip On Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip On Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate with Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 to PN 40
BS 4504 (Part 1) Welding Neck Flange, Hubbed Slip-On, Hubbed Threaded Flange, Plate Flange, Loose Plate with Weld On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 to PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS 10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673
PRESSURE CLASS PN 6 to PN 100

Alloy Steel F1 Flanges Application Industries

  • Offshore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Alloy Steel F1 Pipe Flanges Test Certificates

Revinox provides Manufacturer Test Certificates (MTC) in accordance with EN 10204 3.1, Raw Material Certificates, 100% Radiography Test Reports, and Third-Party Inspection Reports. Additional certifications such as NACE MR 01075 and Ferrite Content reports are provided upon request.

• EN 10204 3.1
• Raw Material Certificate
• 100% Radiography Test Report
• Third Party Inspection Report

ASTM / ASME Alloy Steel F1 Flanges Value Added Services

Material Testing

Revinox ensures all Alloy Steel F1 Flanges undergo strict quality checks before dispatch.

• Tensile & Mechanical Testing
• Hardness Test
• Chemical & Spectro Analysis
• Positive Material Identification (PMI)
• Flattening & Flaring Tests
• Micro & Macro Examination
• Pitting Resistance Test
• Intergranular Corrosion (IGC) Test

Documentation

• Commercial Invoice with HS Code
• Packing List with Net & Gross Weight
• Certificate of Origin (Chamber / Embassy Attested)
• Fumigation Certificate
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• EN 10204 3.1 / 3.2 Test Certificates
• NABL Approved Lab Reports
• WPS / PQR Documentation
• Guarantee Letter & GSP Form A

Alloy Steel F1 Pipe Flanges Packaging

Alloy Steel F1 Flanges are widely used in petrochemical, oil & gas, power generation, chemical, pharmaceutical, pulp & paper, and bulk fluid handling industries. All flanges are manufactured as per international standards and securely packed in wooden cases for export. Each flange is marked with grade, size, heat number, and Revinox trademark. Custom marking is available on request.
